Stand-alone BESS setup

Hybrid power plant setup

Mixed wind farm setup

Utility-scale solar PV setup

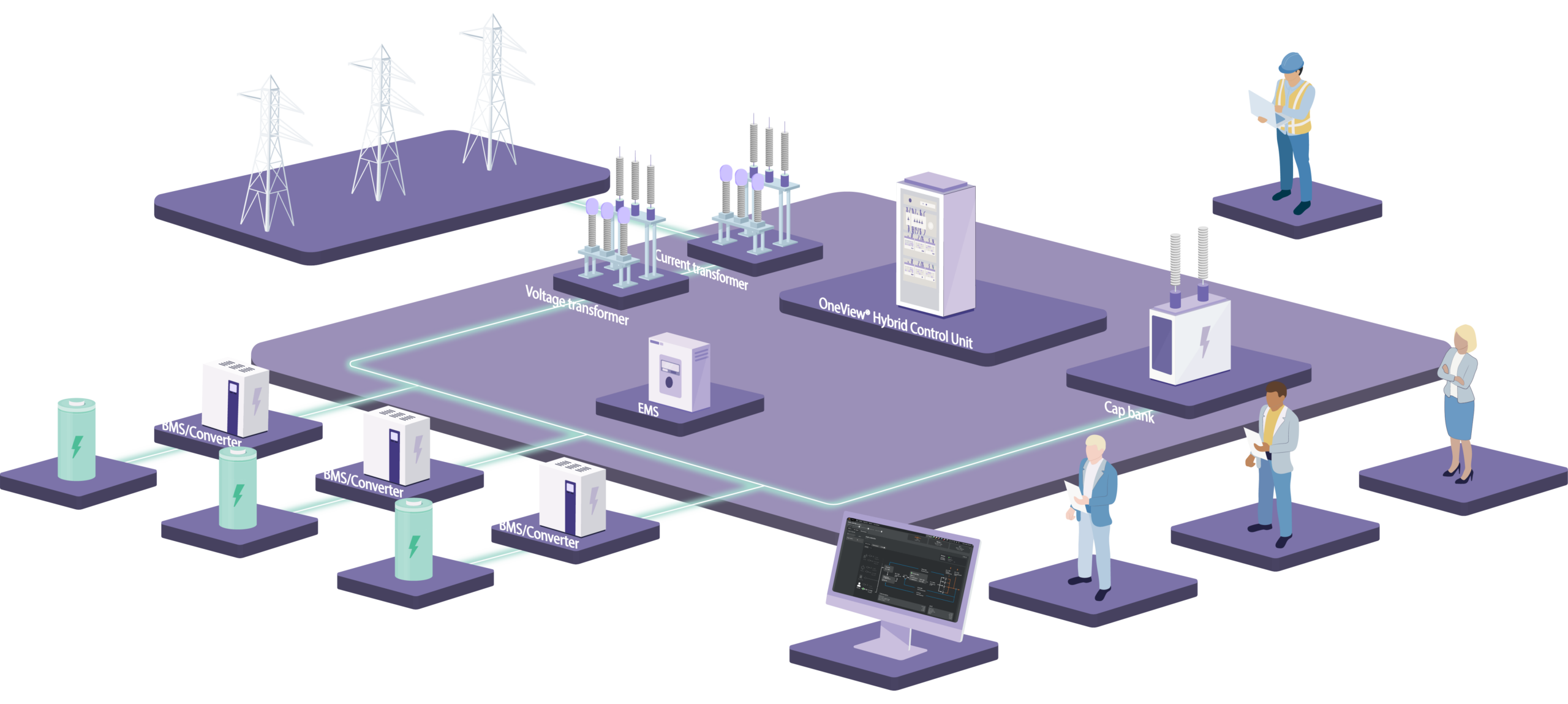

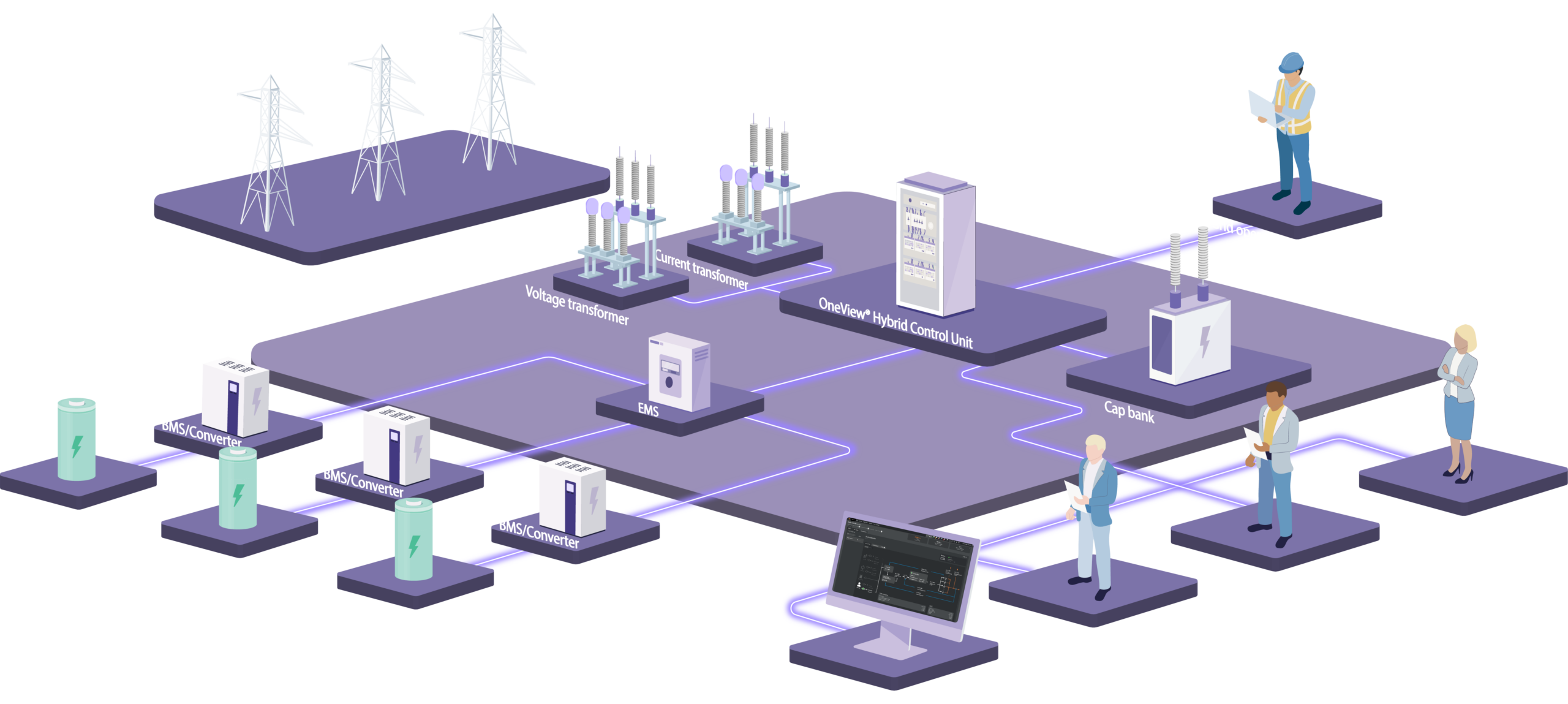

Power plant control of a 24 MW battery storage plant with 12 BMS/Converters

Handle energy dispatch and frequency control efficiently

Get direct access to full battery storage control in one unified system. Use the platform to manage energy output according to set points with flexible power distribution options. The system supports participation in ancillary service markets through flexible set point control and frequency regulation.

Manage multiple ​traders in
a single view​

The control unit enables asset managers to provide access for multiple traders in one unified system, making it possible to manage multiple traders and set points, as well as combine energy trading and ancillary services on the same assets – eliminating the complexity of handling separate systems and control loops.

A standard-built cabinet placed inside the substation

Including:

  • Server
  • PLC
  • Grid meter
  • UPS
  • Router
  • Firewall

Flexible grid services participation

The control unit measures power at the point of connection to regulate output according to set points from utilities, grid operators, or power traders. This allows for simple compliance with grid regulations and smooth participation in ancillary service markets, including:



  • mFRR
  • aFFR
  • FCR
  • FCR-D
  • FCR-N
